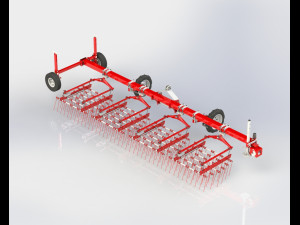

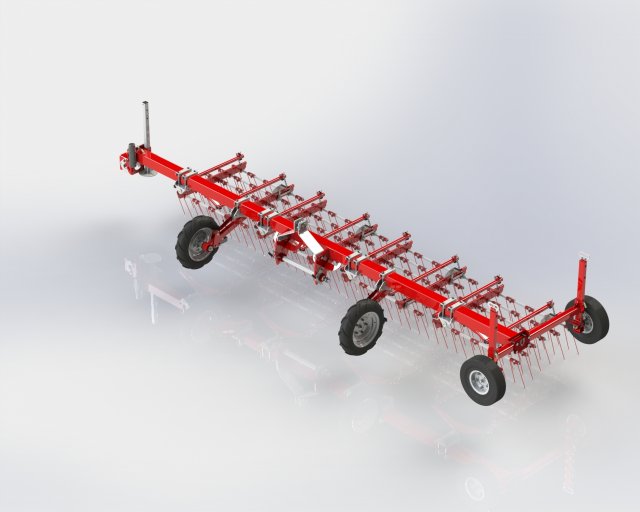

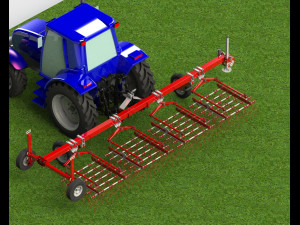

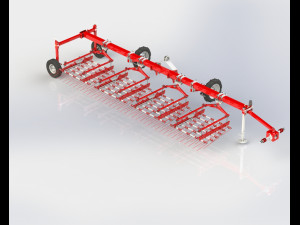

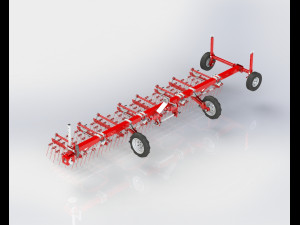

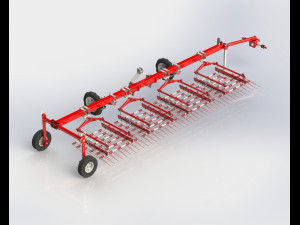

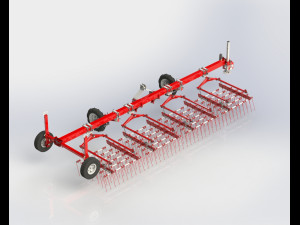

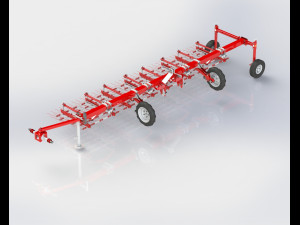

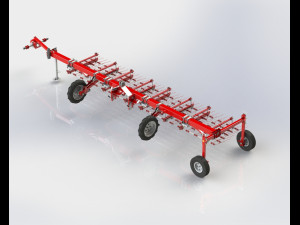

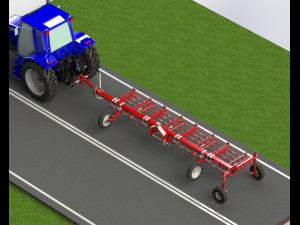

WG 0009 - Flex harrow 600 cm 3D Model

Flex harrow WG 0009 is intended for loosening the upper soil layer, leveling the field surface, destroying the soil crust, crumbling lumps, destroying and deleting weakly weeded weeds on cereals and technical plant, incorporating seeds and fertilizers into the soil. The harrow provides the work with soil moisture from 13 to 27%. On the field, stubble resides (scattered crushed straw of cereals and high-growth crops) are allowed.

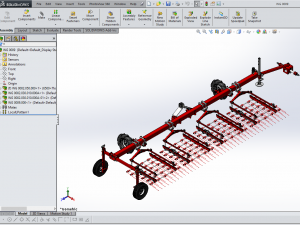

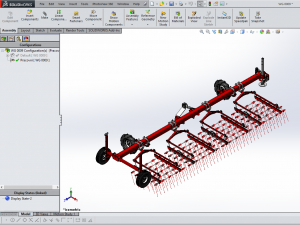

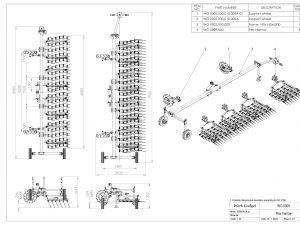

This is full solidworks model. Developed as design documentation for launch into production of this machine. According to the drawings and models, you can implement both single and serial production! This lot contains a complete set of documentation. Models and drawings of all details made in SolidWorks 2015. Design documentation for launch into production of this machine (in formats: *.sldprt; *.slddrw; *.sldasm; *.igs; *.stp; *.stl; oll cad drawings in *.pdf; programs for plasma (laser) saved in the format: *.DXF)

Modeled in SolidWorks 2015. The model contains the most popular formats: SolidWorks: *.sldprt *.slddrw *.sldasm (NATIVE) IGES: *.iges *.igs STEP: *.step *.stp Stereolithography: *.stl All CAD Drawings are saved in format *.PDF Programs for plasma (laser) saved in the format: *.DXF
