si cantik cargo plane for humanity medicine kit
3D Model

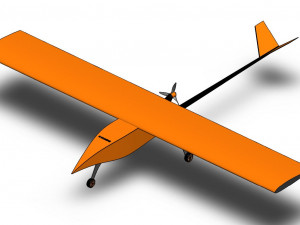

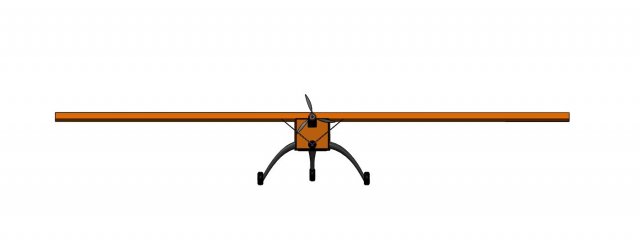

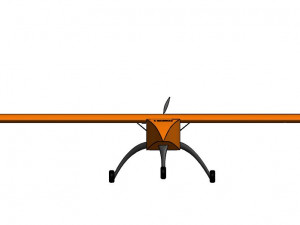

si cantik (cargo plane for humanity medicine kit) is a vehicle to fly or
unmanned aircraft that has a concept fixed wing using stabilizer shaped vtail-. flying
rides were made to have a mission to help deliver goods from a place to a place that is
difficult to reach after a natural disaster, through innovations made in the field of
aerospace, especially in the uav field ( unmanned aerial vehicle). in the background
with the emergence of a problem when natural disasters occur in areas that are difficult
to reach by public transportation, si cantik is here to offer a solution to assist in the
distribution of logistical assistance such as medicines or various kinds of logistics
needed, but it must be adjusted to the luggage. cargo owned by the si cantik flying
vehicle.

the research team's flying vehicle, named si cantik, is a flying vehicle fixed
wing with configuration v tail stabilizer. the material used in the production process
of the vehicle is to use styrofoam with multiples of 17, on the body / fuselage which is
reinforced with resin and coated with colored paper,pipe carbon with a diameter of
3cm used for the tailboom. the electronic components used are brushless motor os
1000kv which can produce thrust 3kgas a propulsion system for flying vehicles,
propeller 12 inch, equipped with a pixhawk as a flight controller, gps ublox neo m8n
as navigation, and telemetry 915 mhzas wireless communication between the vehicle
and the ground. control system. in addition, as an actuator on the control surface and
system release cargo in flying vehicles, it uses 5 mini-servo emax metal gears, and as
a power source for the si cantik flying vehicle, a battery with a capacity of 5000
mah 4 cells is used. Baskıya Hazır: Hayır
