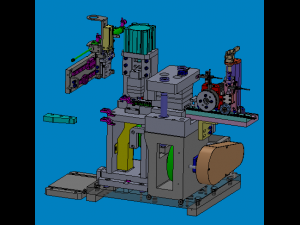

automobile connector bending and cutting machine 3D Model

automobile connector bending and cutting machine

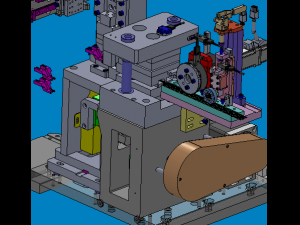

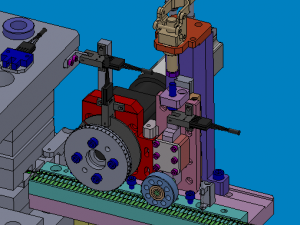

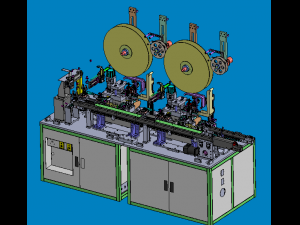

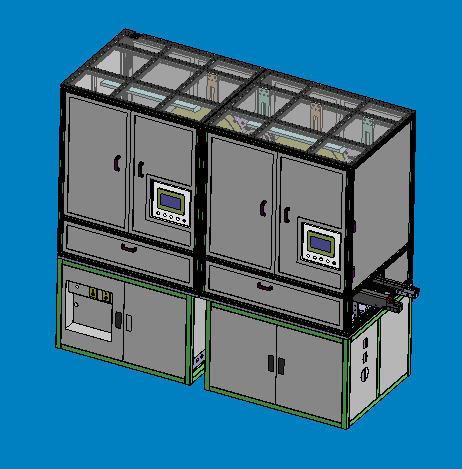

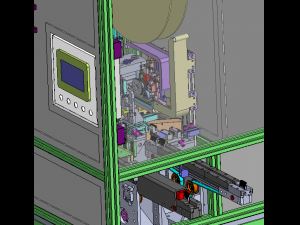

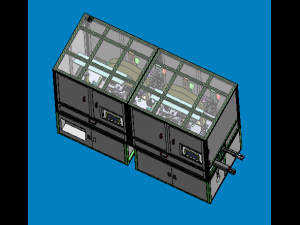

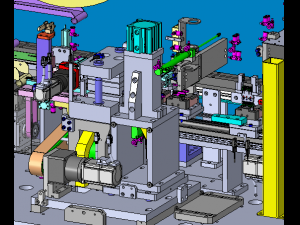

auto linker bending and cutting machine 3d model, [complete set of drawings] complete set of drawings is relatively large, sw design, source document + engineering drawing sharing, can be edited, there are more than 1500 files, after decompression 635m, welcome to download. the equipment is a complete general assembly drawing. the equipment is a bending and cutting machine for automobile linker. the whole process flow is full-automatic cam mold bending terminal. the mold mechanism cuts. the handling mechanism drives the clamping claw to clamp the cut terminal. it can insert the cutting terminal into the mold core automatically with variable spacing, flatten, detect, outflow the good products, and manually take them away and put them into the injection molding machine for injection molding. Baskıya Hazır: Hayır
