assorted gear collection 01 3D Baskı Modeli

assorted gear collection modeled in inventor 2010 and provided in multiple file formats. collection includes multiple spur gear sizes, multiple planetary ring gear sizes, bevel gears, worms, and racks (see below for more detail). all gears are ready for 3d printing.

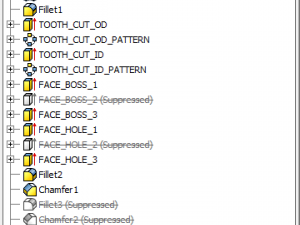

the native inventor files are fully parametric and can be opened and manipulated in any version of the software that is 2010 or newer. the feature trees and parameter tables are logically arranged and clearly labeled, making edits a breeze. all gears have been exported as stp files, allowing them to be opened in any 3d cad software and many 3d graphics applications. all gears have also been exported as stl files, making them ready for 3d printing.

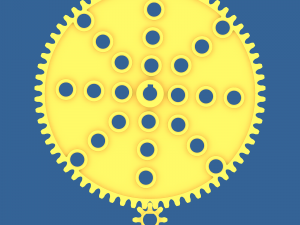

strategic recesses have been engineered into the larger gears to reduce their volume and thus reduce the cost of 3d printing.

as a bonus, planetary gear assembly animations are included as well!

gear specifications:
- approximate involute gear tooth profile
- minimal backlash between gears
- 1/4 inch face width
- 1/4 inch shaft bore
- 16 pitch (p) gear size
- pitch diameter (pd) = gear teeth (t) / pitch (p)
- outside diameter (od) = pitch diameter (pd) + 0.125 inch

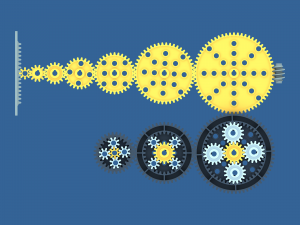

gears:

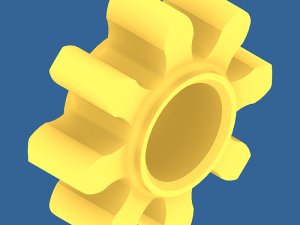

• 8-tooth spur gear
- 0.5 in pitch diameter
- 0.625 in outside diameter
- 0.25 in face width
- 1/4 in round shaft clearance bore

• 8-tooth spur gear
- 0.5 in pitch diameter
- 0.625 in outside diameter
- 0.25 in face width
- 1/4 in ansi d-shaft bore

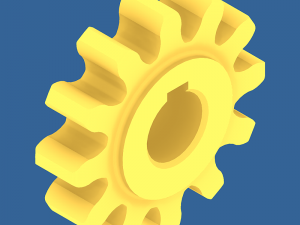

• 12-tooth spur gear
- 0.75 in pitch diameter
- 0.875 in outside diameter
- 0.25 in face width
- 1/4 in bore with ansi 3/32 in keyway

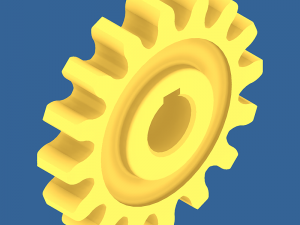

• 16-tooth spur gear
- 1 in pitch diameter
- 1.125 in outside diameter
- 0.25 in face width
- 1/4 in bore with ansi 3/32 in keyway

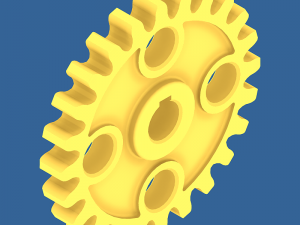

• 24-tooth spur gear
- 1.5 in pitch diameter
- 1.625 in outside diameter
- 0.25 in face width
- 1/4 in bore with ansi 3/32 in keyway

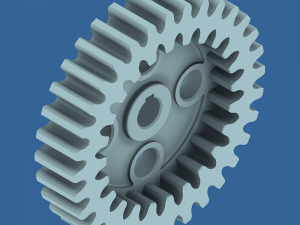

• 32-tooth spur gear
- 2 in pitch diameter
- 2.125 in outside diameter
- 0.25 in face width
- 1/4 in bore with ansi 3/32 in keyway

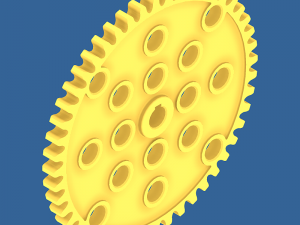

• 48-tooth spur gear
- 3 in pitch diameter
- 3.125 in outside diameter
- 0.25 in face width
- 1/4 in bore with ansi 3/32 in keyway

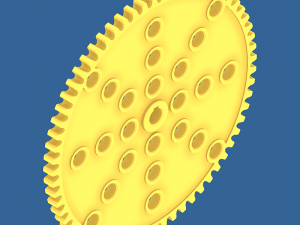

• 64-tooth spur gear
- 4 in pitch diameter
- 4.125 in outside diameter
- 0.25 in face width
- 1/4 in bore with ansi 3/32 in keyway

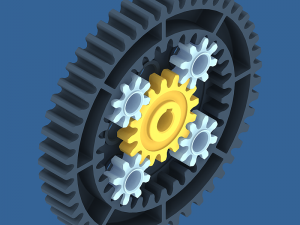

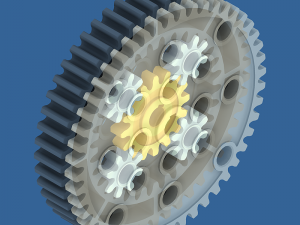

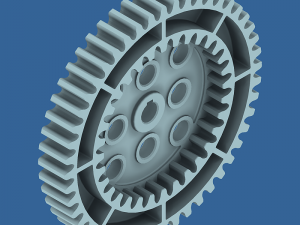

• 24-tooth id / 32-tooth od planetary ring gear
- 2 in pitch diameter
- 2.125 in outside diameter
- 0.5 in face width
- 1/4 in bore with ansi 3/32 in keyway

• 32-tooth id / 48-tooth od planetary ring gear
- 3 in pitch diameter
- 3.125 in outside diameter
- 0.5 in face width
- 1/4 in bore with ansi 3/32 in keyway

• 48-tooth id / 64-tooth od planetary ring gear
- 4 in pitch diameter
- 4.125 in outside diameter
- 0.5 in face width
- 1/4 in bore with ansi 3/32 in keyway

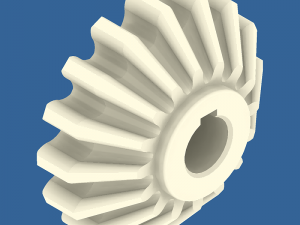

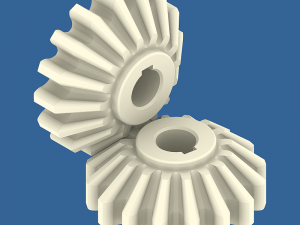

• 16-tooth bevel gear
- 1 in pitch diameter
- 1.125 in outside diameter
- 0.5 in face width
- 1/4 in bore with ansi 3/32 in keyway

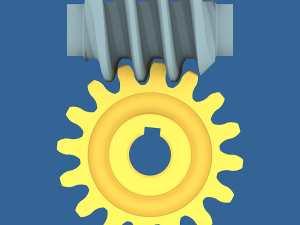

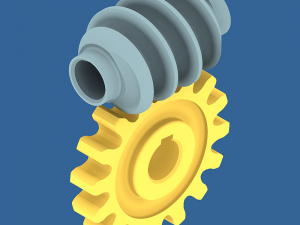

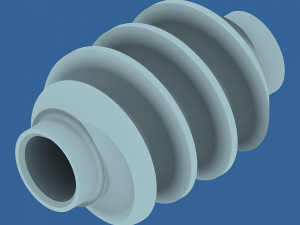

• helical worm
- 0.5 in pitch diameter
- 0.625 in outside diameter
- 1 in length
- 1/4 in ansi d-shaft bore

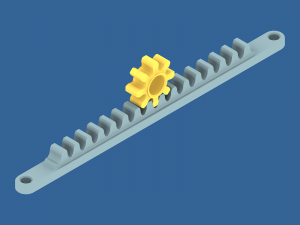

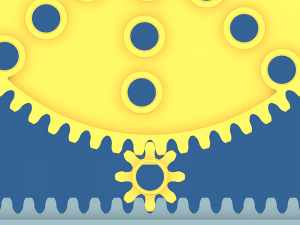

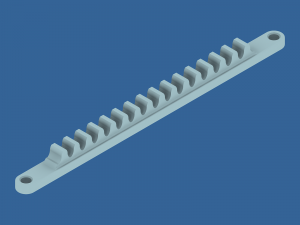

• gear rack
- 0.25 in face width
- 4 in center-to-center length

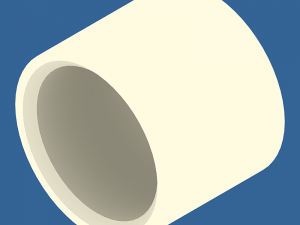

• spacer
- 0.25 in length
- 1/4 in round shaft clearance bore

product includes:
• gear collection inventor 2010 files (.ipt / .iam)
• gear collection stp files (for other 3d software packages)
• gear collection stl files (for 3d printing)
• bonus! planetary gear assembly animation (.avi / .gif)

- christopher spicer (cbspicer)
